HP series multi-cylinder hydraulic cone crusher display diagram

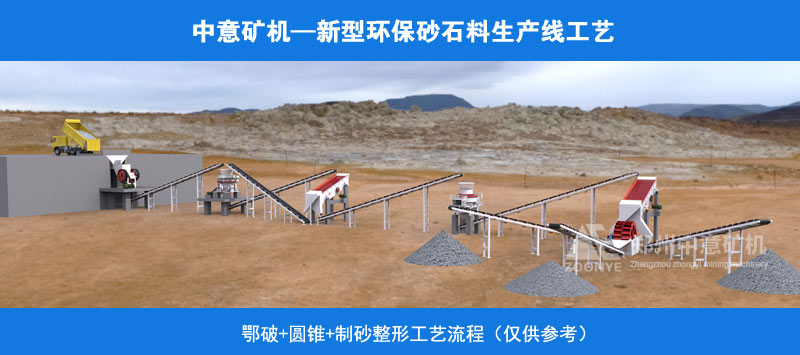

Environmentally friendly sand and gravel production line
This production line is for reference only. The specific process configuration needs to be determined according to the nature, hardness, type of finished product, etc. of the material.

HP multi-cylinder hydraulic cone crusher is a new type of cone crusher developed by our company. It is used to crush high-hardness materials with strict requirements on product shape. This machine is superior to traditional spring cone crushers.

Multi cylinder hydraulic cone breaking can handle materials

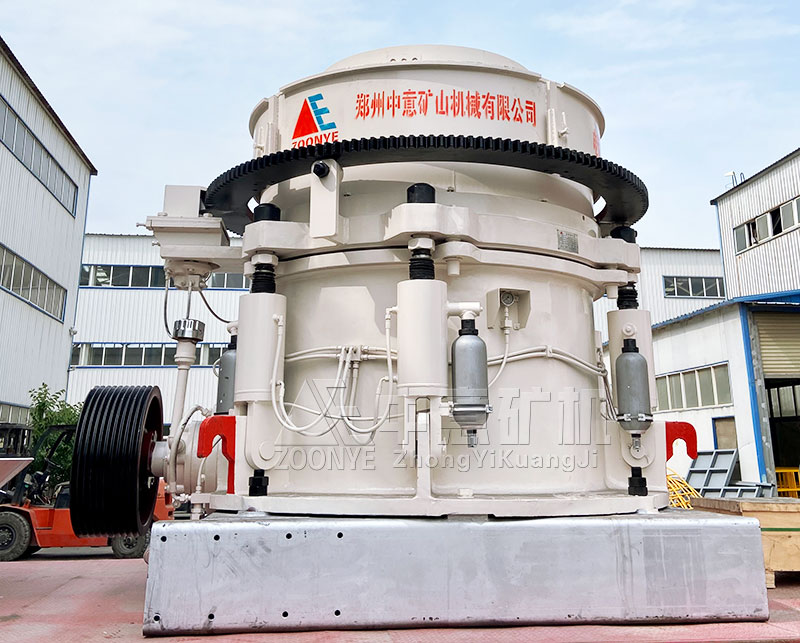

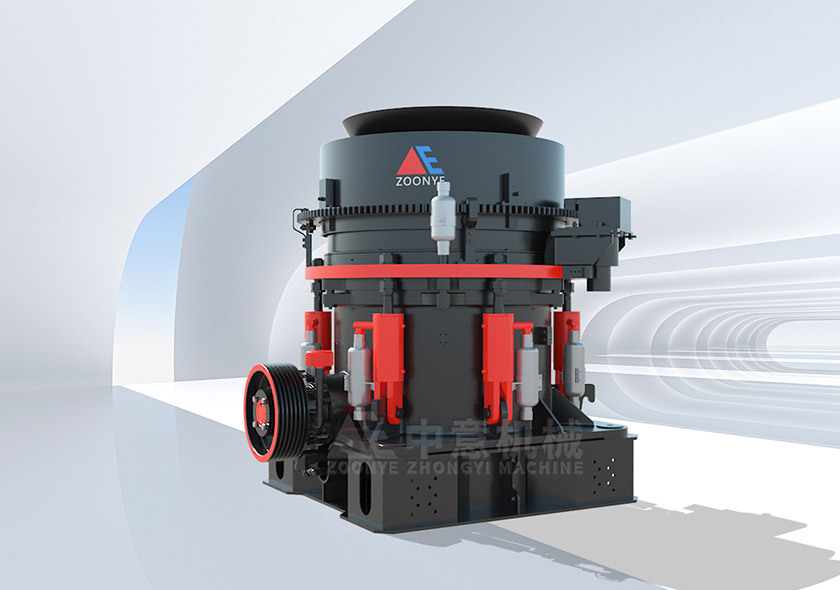

HP multi-cylinder hydraulic cone crusher

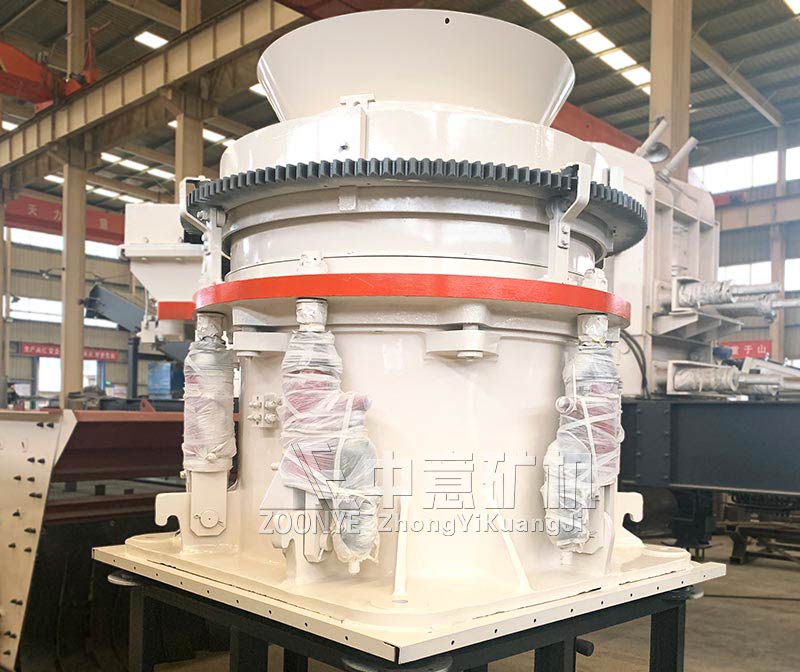

Multi-cylinder hydraulic cone crusher workshop product display

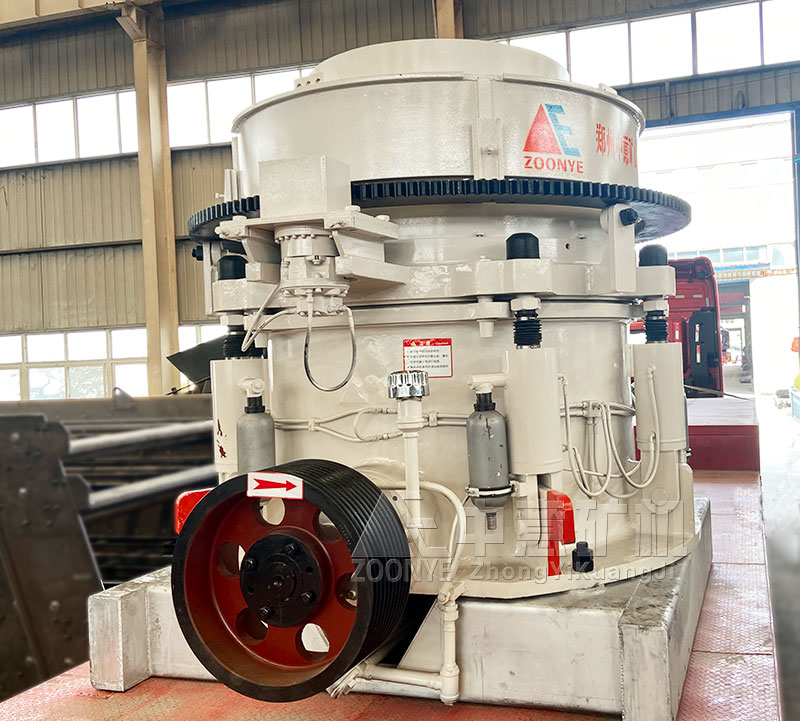

Large hydraulic multi-cylinder cone crusher equipment

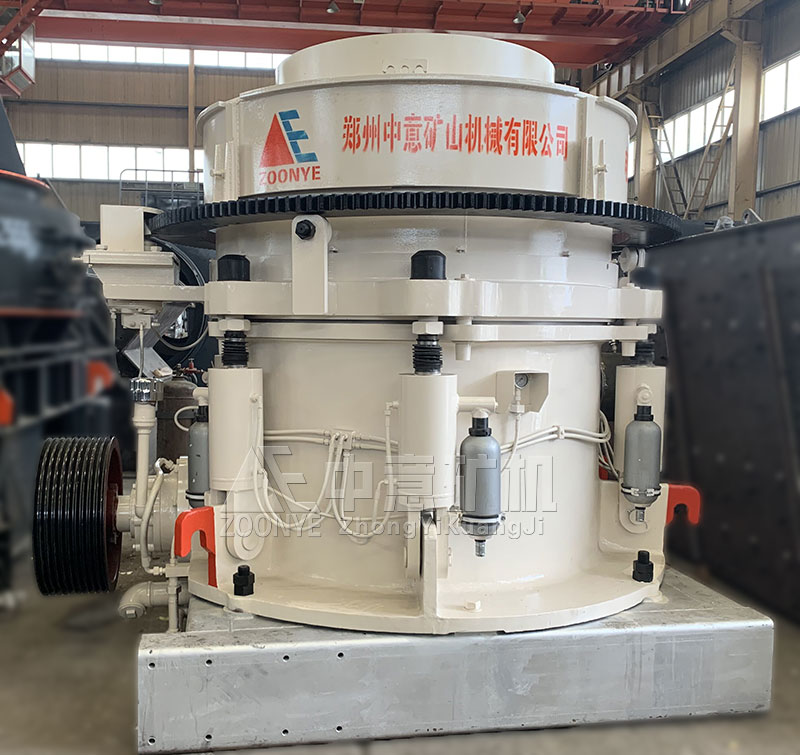

HP multi-cylinder hydraulic cone crusher

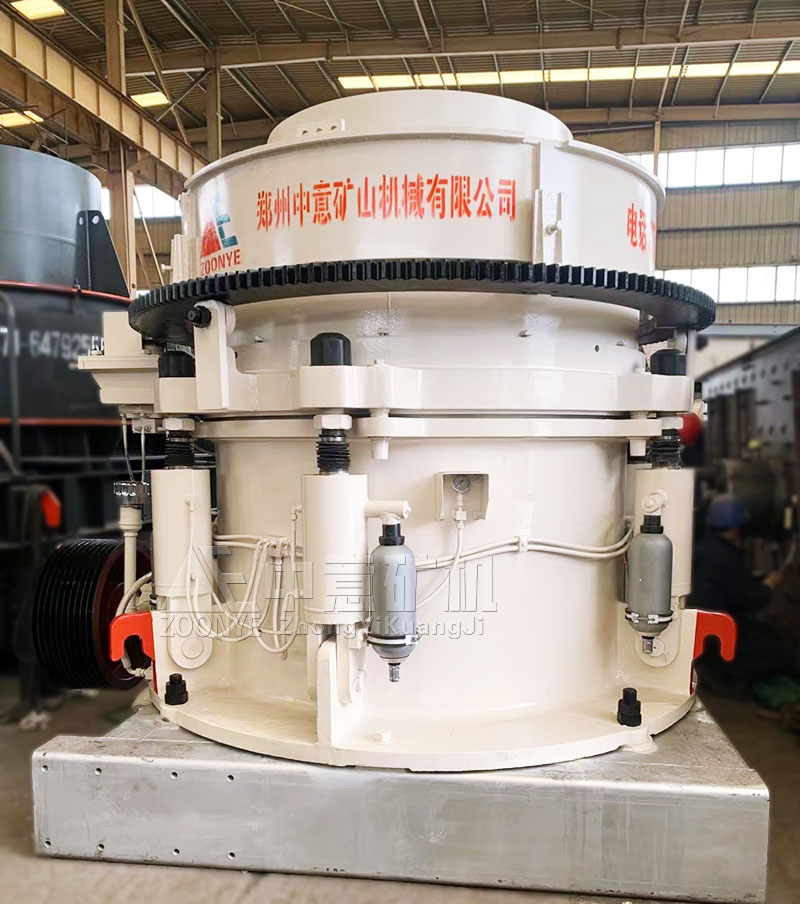

Multi-cylinder hydraulic cone crusher

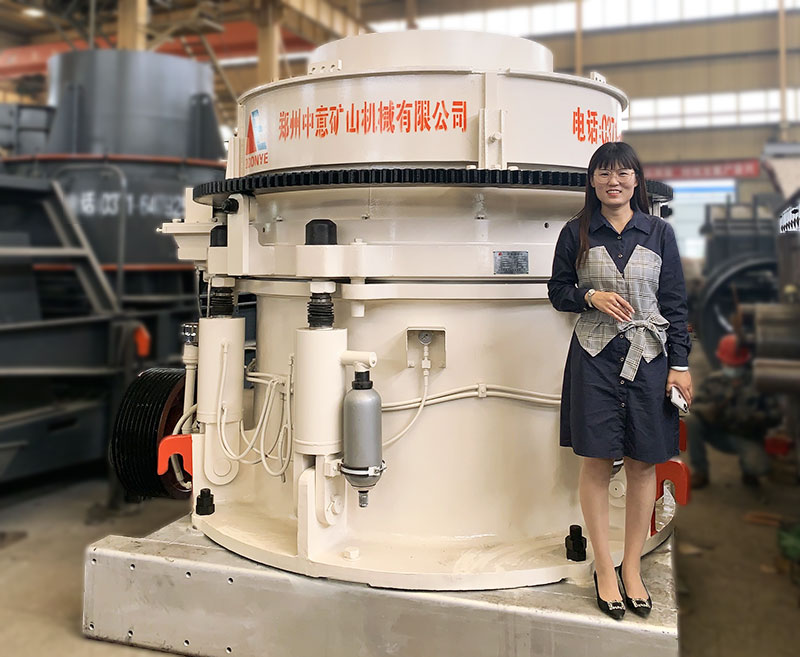

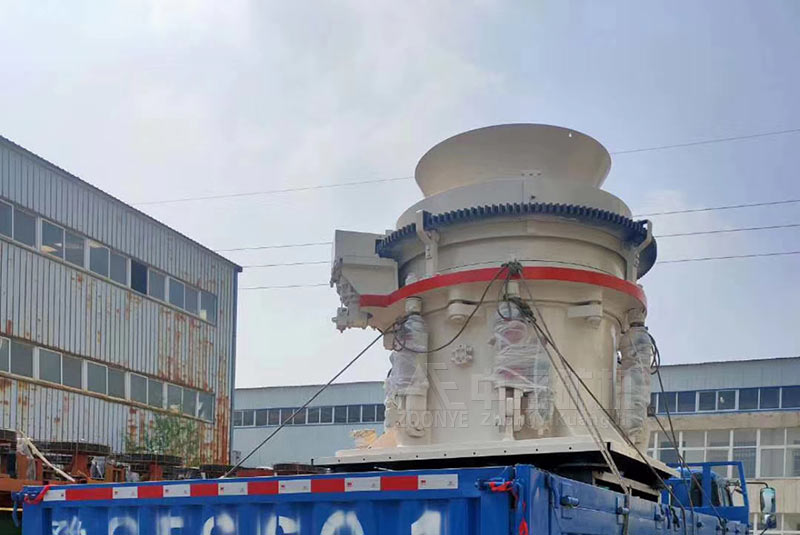

Customized multi-cylinder hydraulic cone crusher delivered to customers in Zhengzhou

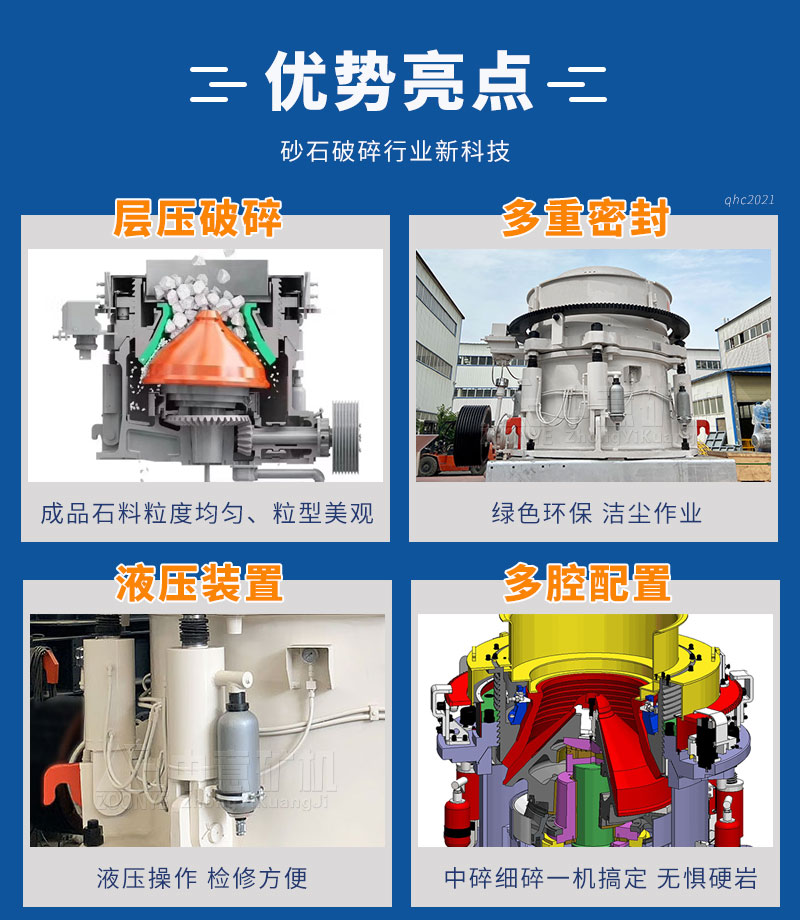

Advantages And Characteristics

多缸圓錐破碎機(jī)優(yōu)勢

Fixed shaft structure design, large crushing force and low equipment infrastructure investment. Laminated crushing chamber design, product size is uniform, cubic, low energy consumption, PLC + touch screen automatic control system ensures safe operation of the equipment. Equipped with a remote touch screen operation interface, which can display real-time working status. The rolling mortar wall does not require fillers, and replacement is quick and convenient. All components can be The top and sides can be removed to facilitate equipment maintenance. Hydraulic motor adjustment and exhaust port adjustment are easy to operate. Hydraulic lubrication combined gas station is small in size and simple in wiring.

Working Principle

多缸液壓圓錐破碎機(jī)工作原理

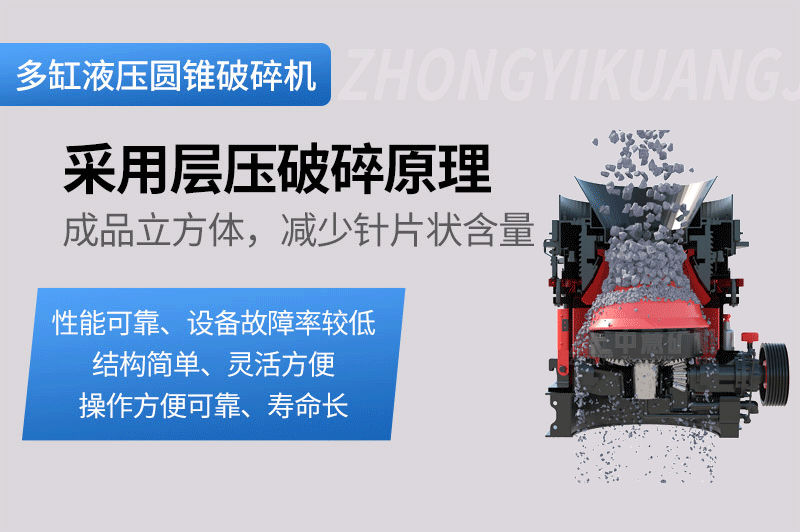

Working principle of multi-cylinder hydraulic cone crusher

During operation, the pulley or coupling, drive shaft and tapered section are driven by the rotation of the motor, causing the eccentric shaft to rotate periodically under the axis. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact of the eccentric shaft and the rolling wall. The hydraulic safety system can eliminate the faulty parts of the support casing and the fixed tapered part through hydraulic pressure when there is an iron failure or boring phenomenon in the machine, greatly reducing the maintenance rate, improving production efficiency, and at the same time exerting a good insurance function.

Technical Parameter

Model	Cavity type	Adjustment range of discharge port（mm）	Feeding port size（mm）	Production capacity（t/h）	Power（kw）
HPZ300	short head	10	77	100-150	200
HPZ300	standard	20	211	200-300	200
HPZ400	short head	10	92	120-180	315
HPZ400	standard	25	252	250-400	315
HPZ500	short head	13	95	180-250	355
HPZ500	standard	25	286	350-500	355
MP800	short head	13	155	200-430	600
MP800	standard	32	297	450-700	600
MP1000	short head	10	169	220-510	655
MP1000	standard	38	390	600-900	655
